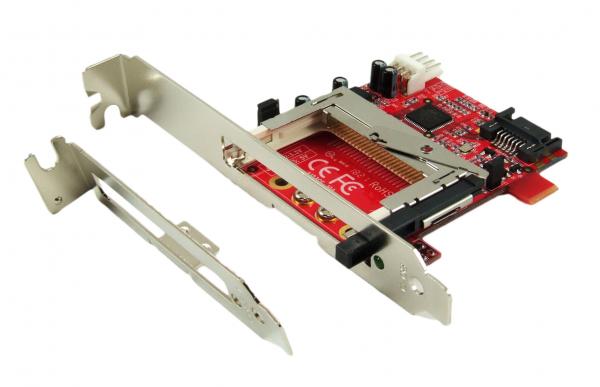

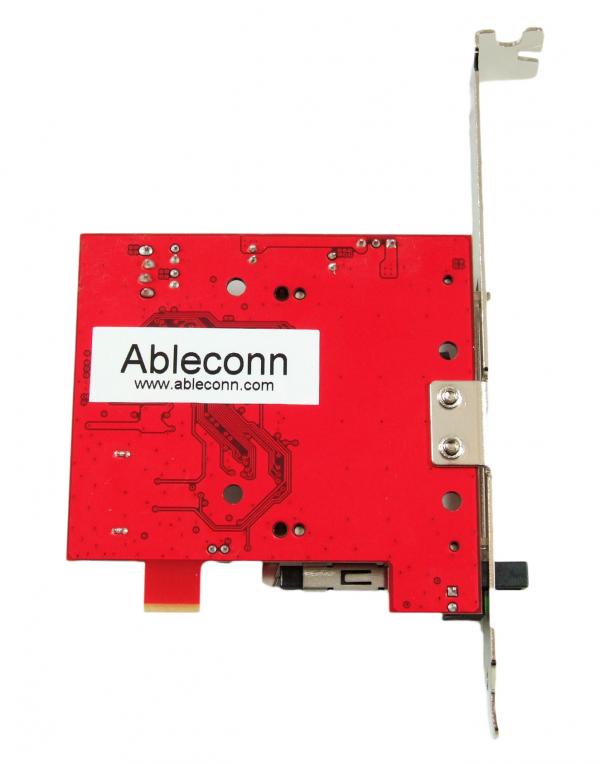

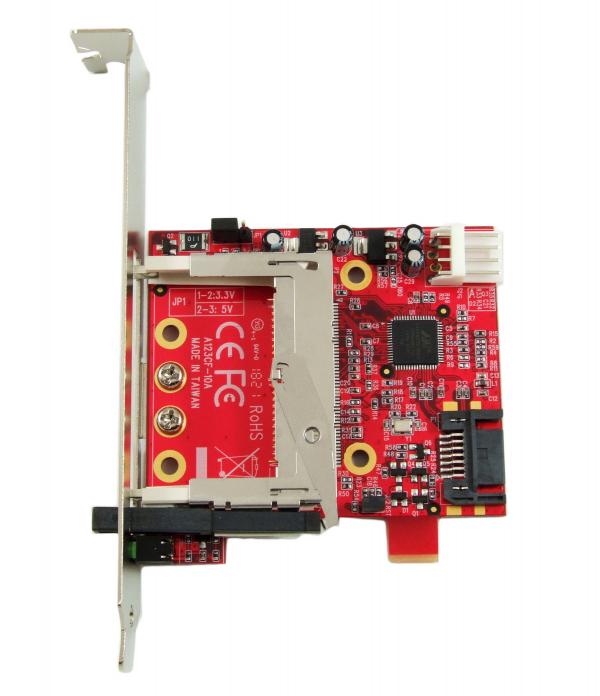

Ableconn ISAT123CF Compact Flash Bridge Board with PCIe Bracket - SATA CF Bridge Adapter

Ableconn ISAT123CF Compact Flash Bridge Board with PCIe Bracket - SATA CF Bridge Adapter

  • Product Specifications:

    • Dimensions 2.7 x 2.6 x 0.3 inches / 68 x 65 x 7 mm
    • Weight 1.44 ounces / 40 g
    • Capacity Up to 3 Gbps (SATA II)
    • Chipset Marvell 88SA8052
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Install a Compact Flash reader to the back of computer system using a SATA port.
  • Support Bootable & Hot-Plug Compact Flash Type I / Type II or IBM Microdrive
  • Support any size of CF memory module up to 2TB
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. Made in Taiwan.





Product Description

The Ableconn ISAT123CF let you easily install a CF reader to the back of computer system using a SATA port.


Specification

  • Connector:
    • 1 x CF receptale socket
    • 1 x SATA (7-pin, Data) (to be connected with a SATA cable to motherboard)
    • 1 x SP4 (4-pin; small drive power) Male



  • Chipset: Marvell 88SA8052
  • Data transfer rate:
    • Up to 3 Gbps (SATA II)
  • Supported Media:
    • Type I / Type II CF or IBM Microdrive
  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux



  • Compliant with Serial ATA 2.6 specifications and High transfer rate of 1.5 and 3 Gbps
  • The CF card can be the primary bootable device containing the OS and application
  • On board activity LED for CF access
  • CF Push bottom ejector on board
  • CF and PCBA Powered by 4-Pin floppy power connector
  • CF 3.3V / 5V Voltage selection
  • ATA/ATAPI PIO mode data transfer
  • ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
  • ATA/ATAPI-7 Streaming feature set
  • ATA/ATAPI 48-bit address feature set
  • SATA hot-plug
  • Low Profile PCIe Form Factor; Regular size PCIe bracket on board and an additional Low Profile bracket included
  • Power Consumption: 5V / 170mA
  • Operating temperature range: 0 - 55 ºC
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn ISAT123CF CF to SATA Brodge Board with PCIe bracket
  • 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
  • 1x Low profile bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
